ER DIAGRAMS THAT DO NOT GO STALE

Why diagrams go stale

The reason is structural.

Every established ERD generator needs one of two things: a live database connection or an importable application. Both are fine on a developer laptop. Both are awkward everywhere the diagram would actually be refreshed automatically:

• A CI job has no database. Spinning one up just to draw a picture is out of proportion.
• A documentation pipeline should not have to install your entire dependency tree.
• Anyone reviewing a repository they cannot install gets nothing at all.

So regeneration stays a manual step. And a manual step that blocks nothing competes permanently with everything else on the board. The problem is not the team; it is that updating the diagram was never in the path of any commit.

The diagram as a build artifact

The fix is to change what the diagram is derived from. Not from a database and not from a running application, but from the model source files — the very files the change itself touches.

That single move changes the economics. If a diagram can be produced by anything that can read the repository, then it can be produced by CI, by a pre-commit hook, by a docs build. And what can be produced automatically can also be verified automatically.

That is exactly what we built erdify for. It parses model files with Python’s standard-library ast module — it never imports your code and never opens a connection, which is why it has no runtime dependencies at all:

uvx erdify ./src/database -o docs/erd.puml

No setup, no installing it into the project, no database. The tool reads files, nothing more.

The drift check in CI

The generator is replaceable. The pattern is not:

erdify ./src/database -o docs/erd.puml --check

--check regenerates the diagram in memory, compares it to the committed file, and exits with an error code if the two have diverged. Nothing is written and nothing is pushed.

Put that in CI and a pull request that changes a schema without bringing its diagram along fails. The developer regenerates, commits, and the diagram lands in the same pull request as the migration that caused it — where a reviewer can see both together.

That last point is the one that matters. The obvious alternative — a bot that regenerates the diagram and commits it to the default branch — feels more convenient, but it only moves the problem: the change lands on the main branch unreviewed, and if a run ever comes up empty it replaces a good diagram with a blank one. Silently, with a green check.

For a diagram embedded directly in a Markdown file — which is where it actually gets read — the same gate works:

erdify ./src/database --inject README.md --check

--inject writes the diagram between two marker comments and leaves the rest of the file alone. As Mermaid, which GitHub and GitLab render natively, so the diagram sits in the pull request rather than in an attachment.

If you would rather catch it before the push, there is a hook:

# .pre-commit-config.yaml
repos:
  - repo: https://github.com/devsuit-berlin/erdify
    rev: v0.14.0
    hooks:
      - id: erdify-check
        args: [./src/database, -o, docs/erd.puml]

Naming the limit

Reading source instead of importing it has a price, and any honest write-up names it: the tool only sees what is written in the file. A model assembled at runtime via type(), a table name from a computed expression, fields attached in a loop — all invisible.

For most codebases this is a non-issue; for some it is disqualifying. If your schema genuinely comes into existence at runtime, an import-based generator is the right instrument. We say so in our comparison of the alternatives, including the cases where a competing tool is the better answer.

We think it is that openness that makes the rest dependable. Every architectural decision comes with the question of where it stops holding.

The polyglot case

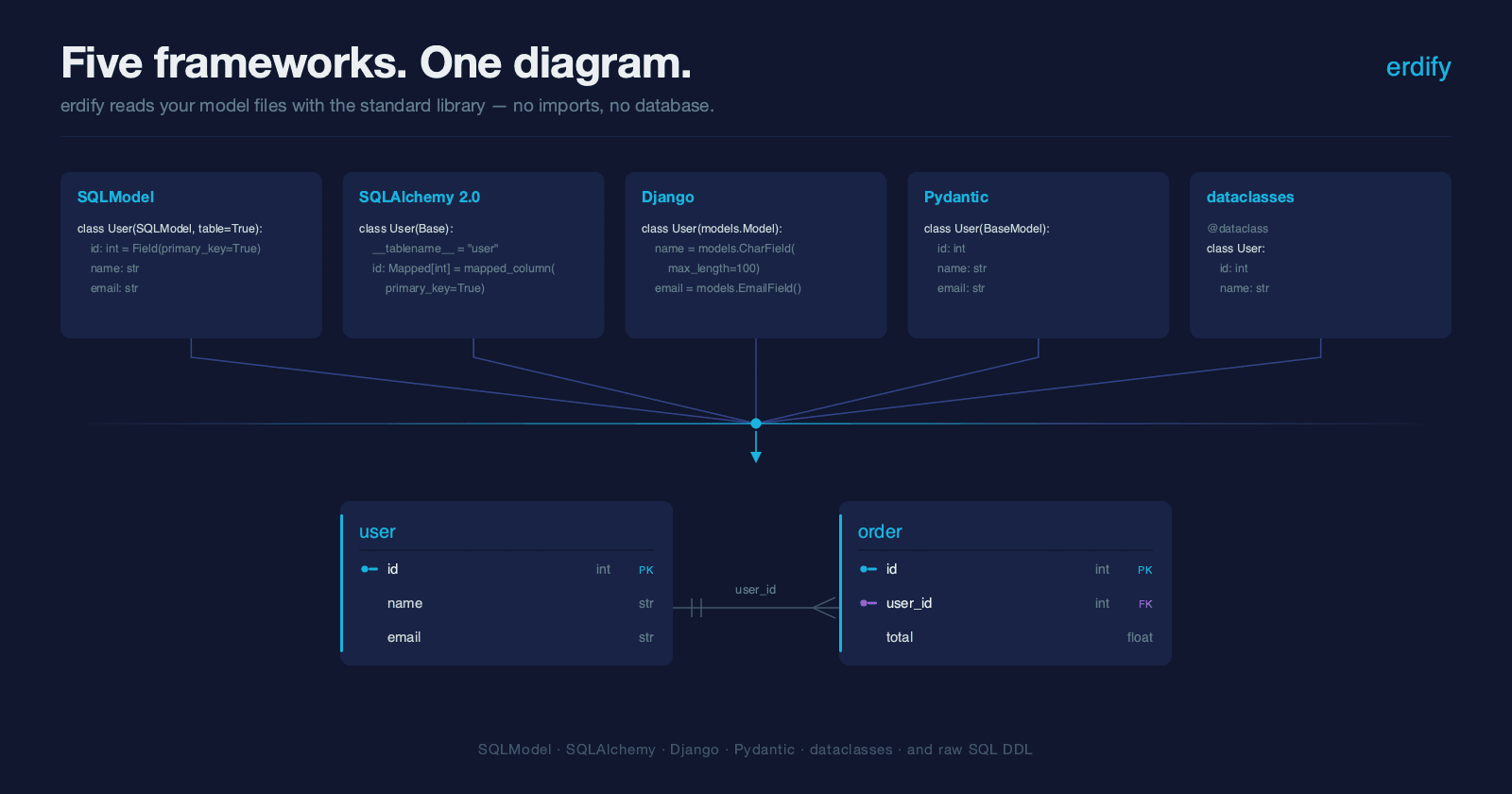

Where this gets genuinely interesting is in systems that have grown over time. A Django backend, a FastAPI service on SQLModel, an internal tool built on plain dataclasses, plus a schema.sql for reporting — combinations like that accrete over years, each for good reasons at the time. The result is still four schemas, four tools and four diagram styles.

Reading source rather than runtime makes that tractable, because the parser does not have to load four incompatible frameworks. One command produces one diagram format across all of them — PlantUML, Mermaid, JSON, or a self-contained HTML page.

For teams on django-ninja there is now --base-classes: base classes defined outside the scanned files, such as ninja.Schema, can be named and are then recognised. And .sql files are read directly through the optional erdify[sql] extra — the analytics schema ends up in the same diagram as the ORM models.
